LED Strip Buying Checklist: What to Confirm Before You Order

Color quality: CRI and color temperature

CRI describes how faithfully light renders color against a reference. It matters most where people judge materials, food or skin tones, and it varies by product, so read the published value rather than assuming a tier. Some product families also publish an R9 figure for deep reds.

Color temperature is the character of the white, and it is a fixed property of a static white strip. If two runs in the same sightline are ordered at different temperatures, the mismatch is obvious and permanent. Decide the temperature once, then apply it across every line on the order.

IP rating, stated exactly

Never accept a general claim that a strip is waterproof. Read the exact IP rating printed for that product, then check it against where the strip goes and what will reach it. That rating describes the strip on its own. Joints, end seals, the driver's enclosure, the fixing method and the applicable code all have to suit the location as well.

Our comparison of IP20, IP65 and IP67 strips sets out what each covers. For anything damp or exposed, confirm the rating of every part in the chain rather than the tape alone.

Cut interval, maximum run, and tape width

Three physical numbers decide whether the product fits the job. Cut interval sets how finely the strip can be shortened, so a long interval on a short shelf leaves you stranded. The published maximum run sets how far one feed carries before a second feed or power injection is needed. Tape width decides what will hold it.

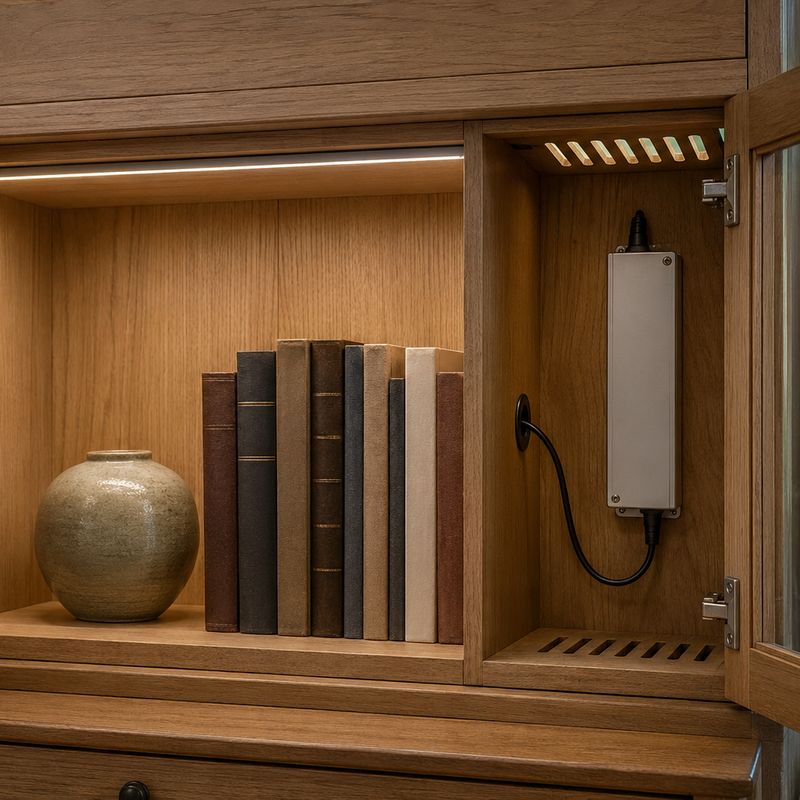

Check the width against the internal dimension of the housing, not the outside dimension. The EnoLED Low Profile Surface Mount Channel publishes its own internal width, and that figure is the one that has to accommodate your tape (verify both before ordering). Tape runs warm once powered, and an aluminum housing helps dissipate that heat as well as shielding the strip. It reduces, without guaranteeing, the removal of visible dots; density, channel depth and diffuser choice all feed in. No channel is mandatory.

Connector pin count and joining method

Count the pads on the strip before choosing connectors. Single color, tunable white and RGB or RGB plus white strips each carry a different number of conductors, and the wrong pin count will not work. A great many strips accept a cut at their marked points and a rejoin afterwards, some by matched connector and some by solder, according to the product. Confirm which method your item supports.

Driver capacity and dimming behavior

Multiply each product's watts per foot by the length you are installing, then find a supply whose rated output sits at least 20 percent clear of that sum (verify the headroom guidance in force and the rating published for any unit in the power supply range before ordering).

Dimming is a compatibility question, not a feature box. Confirm the strip, driver, wall device and any low voltage controller are documented to work together, then test the combination before installing. A phase cut wall dimmer sharing a circuit with a smart low voltage controller is out unless both sets of documentation allow it. Hardwired drivers, junction boxes and wall devices sit on the line voltage side. Hand them to a licensed electrician, who works from the product instructions, local code and NEC requirements.
