Home » Dimmable Power Supply » EnoLED 0-10V Dual Channel 24V LED Driver 90W Constant Voltage

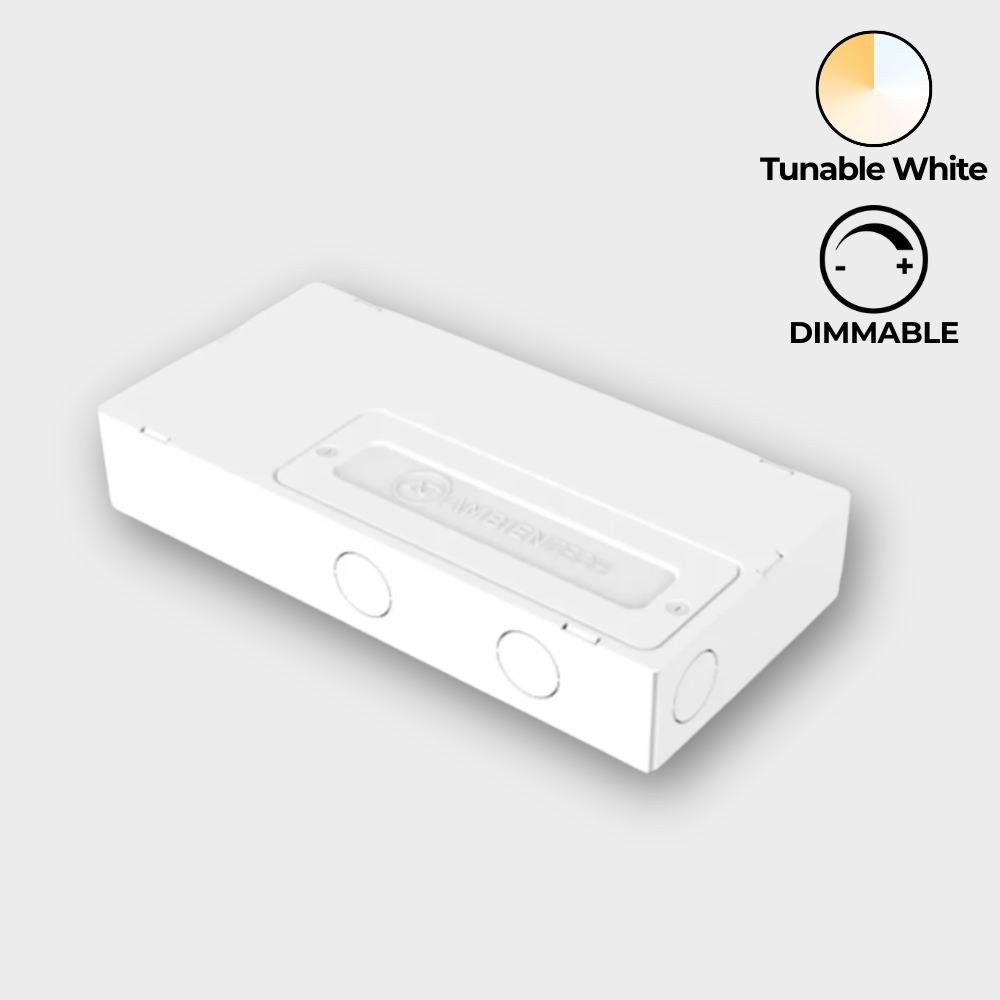

EnoLED 0-10V dual channel 24V 90W constant voltage LED driver

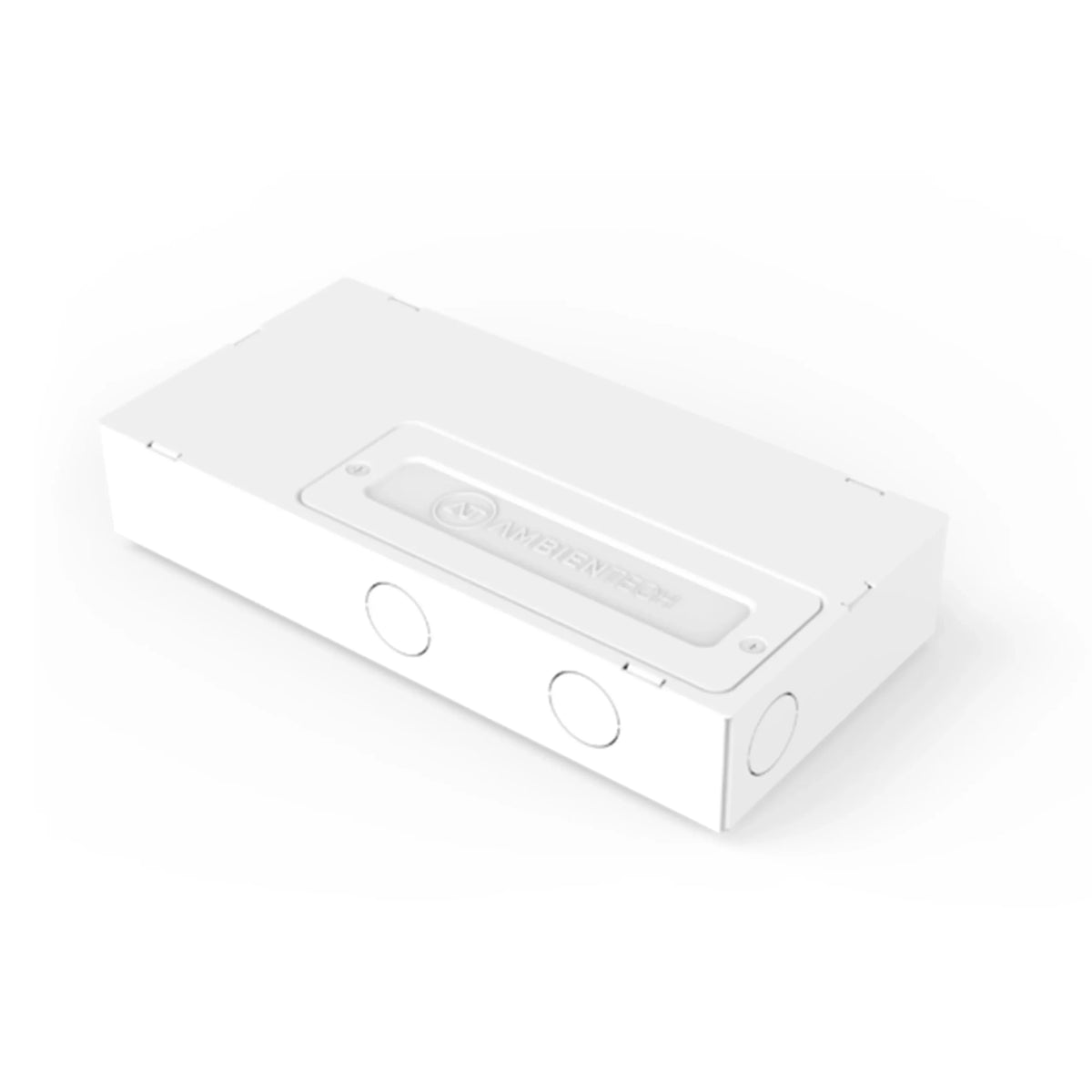

EnoLED 0-10V dual channel 24V LED driver with 90W constant voltage output.

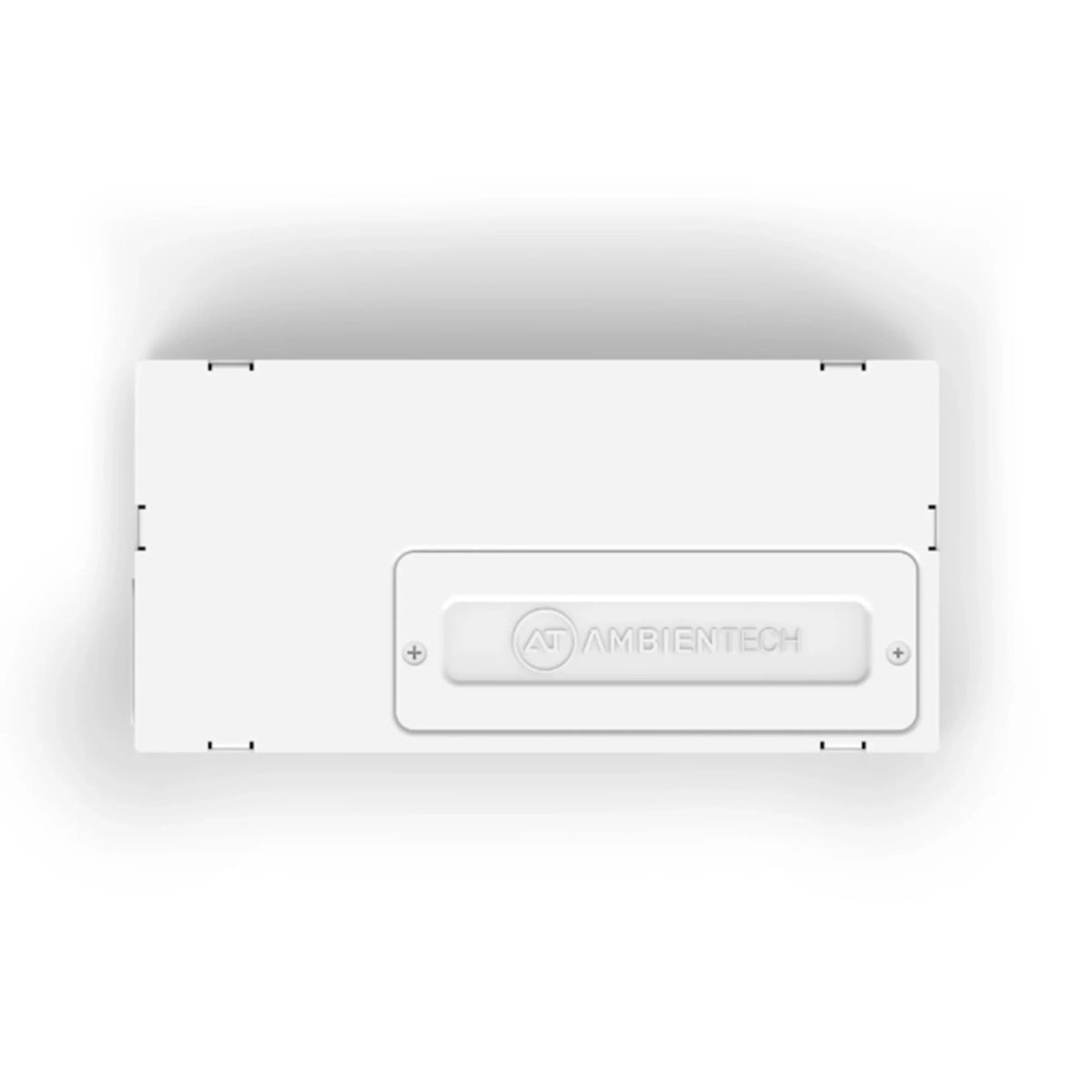

Product specifications for EnoLED 0-10V dual channel 24V LED driver.
EnoLED 0-10V dual channel 24V 90W constant voltage LED driver
EnoLED 0-10V dual channel 24V LED driver with 90W constant voltage output.
Product specifications for EnoLED 0-10V dual channel 24V LED driver.

EnoLED 0-10V Dual Channel 24V LED Driver 90W Constant Voltage

In stock
$385.00
Are you a Pro? Save big everyday by joining the Pro Club
SKU: DT-24V-90W-N
UL Class 2, Easy Install
Flicker-Free to 0.1% (Title 24)
3-in-1 Dimming
0-10V Compatible
Free Project Support - Contact Us
Free Shipping Over $249 - Details
30-Day Money-Back Guarantee
Certification logo 1 Certification logo 2 Certification logo 3

Orders ship within 1–2 business days from our U.S. fulfillment locations. Enjoy free standard shipping on orders over $249, shipped via UPS Ground. Need it faster? Expedited shipping options are available, with all rates shown at checkout - Details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

The EnoLED 0-10V Dual Channel 24V LED Driver 90W Constant Voltage is designed for high-performance, flexible lighting control in residential and commercial applications. Compatible with standard 0-10V wall dimmers and control systems, it supports 3-in-1 dimming functionality including standard dimming, dim-to-warm, and tunable white—eliminating the need for an additional controller. With multi-curve dimming for each mode and smooth, flicker-free performance down to 0.1%, it meets IEEE and Title 24 requirements for superior lighting quality. This UL Listed Class 2 driver features built-in wiring compartments with knock-outs for safe and easy installation, supports full load capacity with no minimum load requirement, and is ready for fast delivery from New York.

Hospitality and Wellness Spaces

Kitchen and Task Areas

Living spaces

Offices and Workspaces

Retail Displays

Specifications

Max Power:
90W
Rated Current:
3.75A
Rated Volatge:
24VDC
No Load Voltage (No Load):
25.2VDC
Input Voltage:
120-277VAC
Input Frequency:
60Hz
Power Factor:
PF>0.96
Efficiency (Max Load):
9%
Over Current:
CC Mode
Short Circuit:
Hiccup mode, auto-recovery after short circuit removed
Over Temperature:
90°C Max – Auto Recovery
Ambient Operating Temp:
-30 °C – + 40 °C / -86°F – + 104°F

Frequently Bought Together

Purchase a complete kit with all the components needed:

LED Controllers FAQ

1. What types of LED controllers do you offer?

We offer smart low-voltage LED controllers with WiFi and app control, as well as systems designed to work with standard phase-cut (TRIAC) wall dimmer switches.

2. What is a smart low-voltage LED controller used for?

Smart low-voltage controllers are used when app-based control, scenes, scheduling, or color control is needed. They are commonly used with RGB, RGB+CCT, and tunable white LED lighting.

3. What is phase-cut (TRIAC) dimming?

Phase-cut (TRIAC) dimming is the most common LED dimming method and works with standard wall dimmer switches. Dimming is controlled on the AC side using a compatible dimmable power supply.

4. When should I use a smart controller instead of a wall dimmer?

Use a smart controller for color control, tunable white adjustment, or app-based operation. Use a phase-cut wall dimmer for simple brightness control of single-color LED lighting.

5. Can smart controllers and wall dimmers be used together?

No. Smart low-voltage controllers and phase-cut wall dimmers are different control methods and should not be used together on the same circuit.

6. How do I choose the right LED controller?

Choosing the right LED controller depends on the LED type and how you want to control it. Color-changing or app-controlled lighting requires a smart controller, while simple dimming uses a phase-cut compatible system.

Need assistance with your project or purchase?

Our design specialists are ready to help you choose the right LED strip lighting, LED driver, and accessories for your application - Contact Us

Downloads

Download Specs
