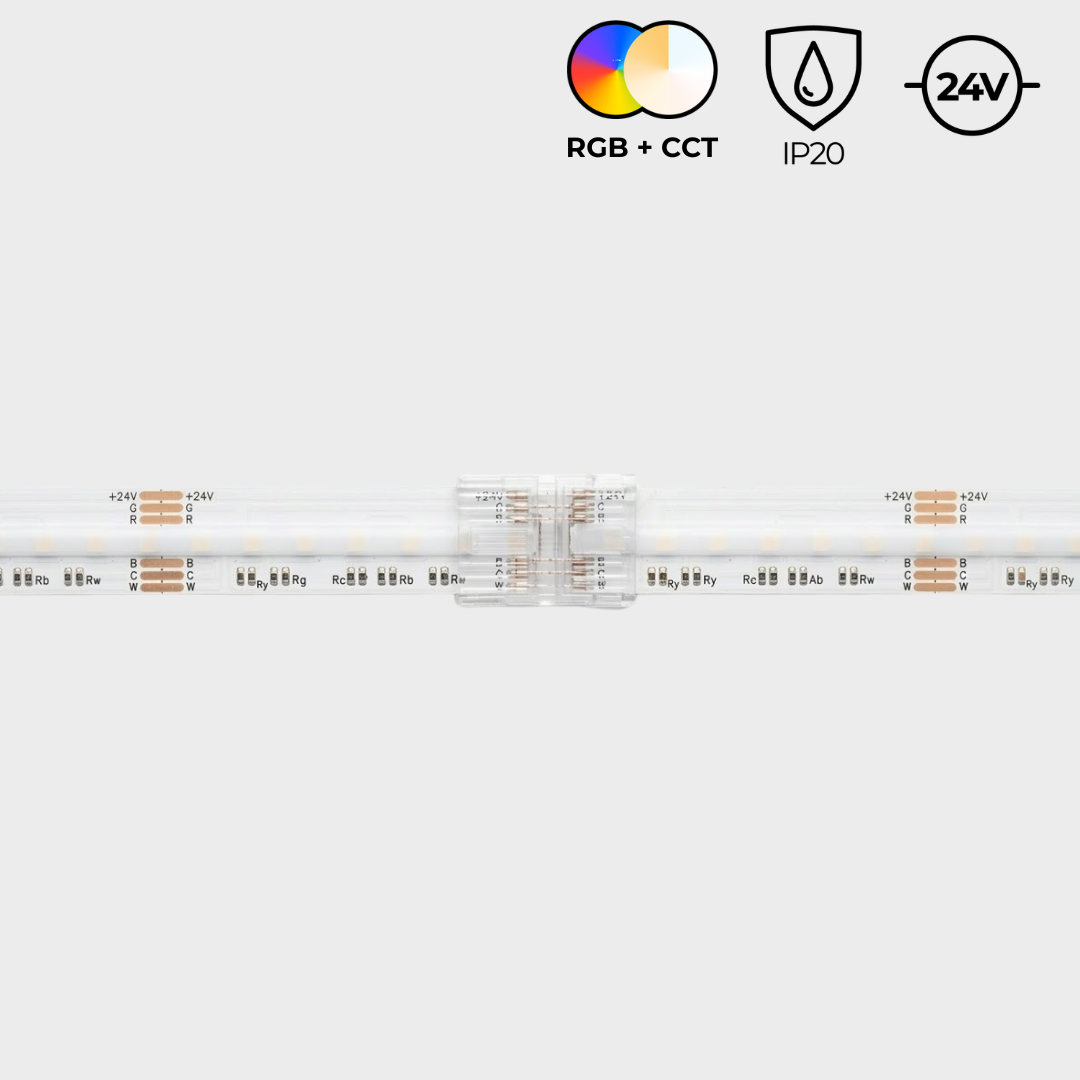

EnoLED solderless 6-pin RGB+CCT LED strip connectors for LED strip lighting

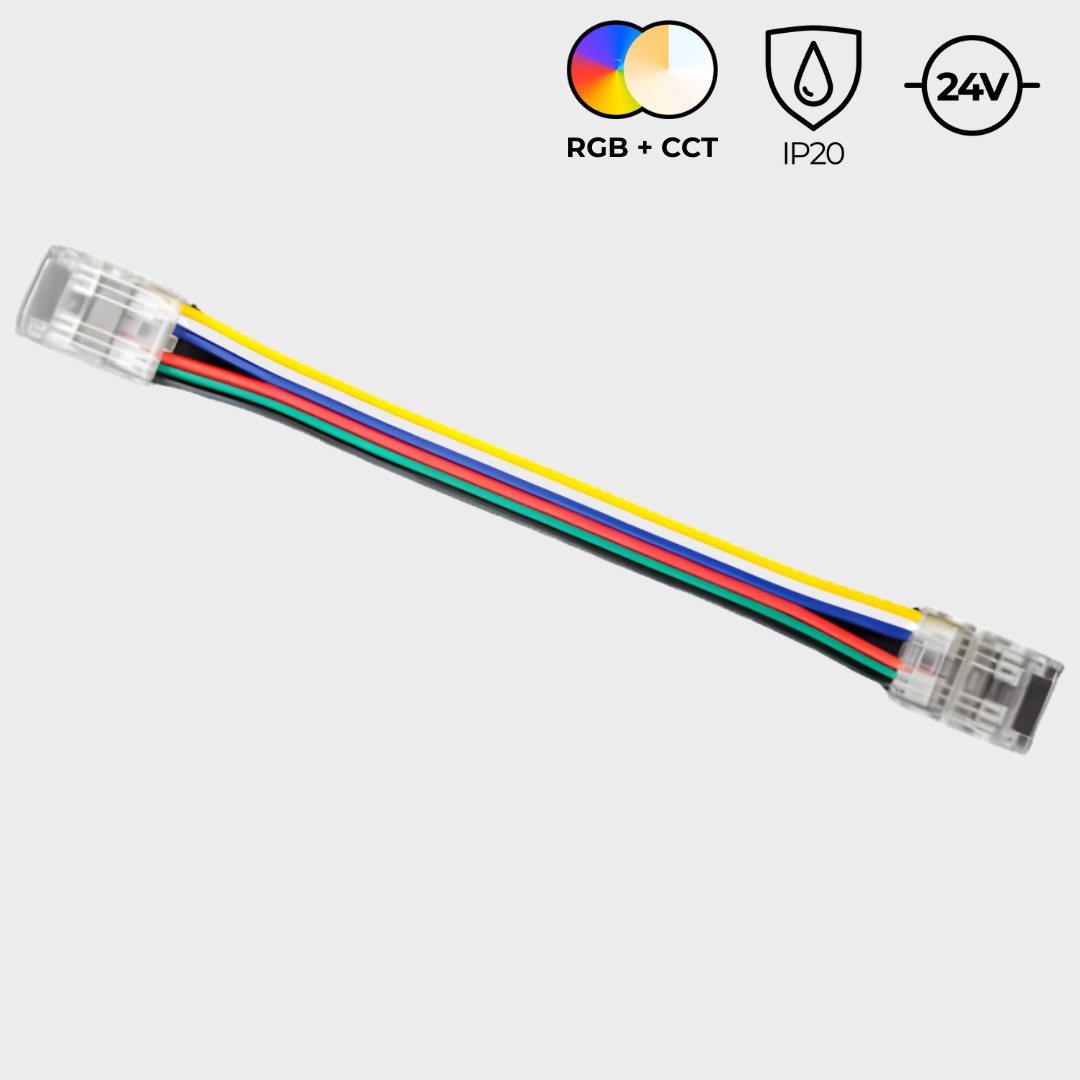

EnoLED solderless 6 pin RGB+CCT strip-to-strip connector for LED strip lighting installations

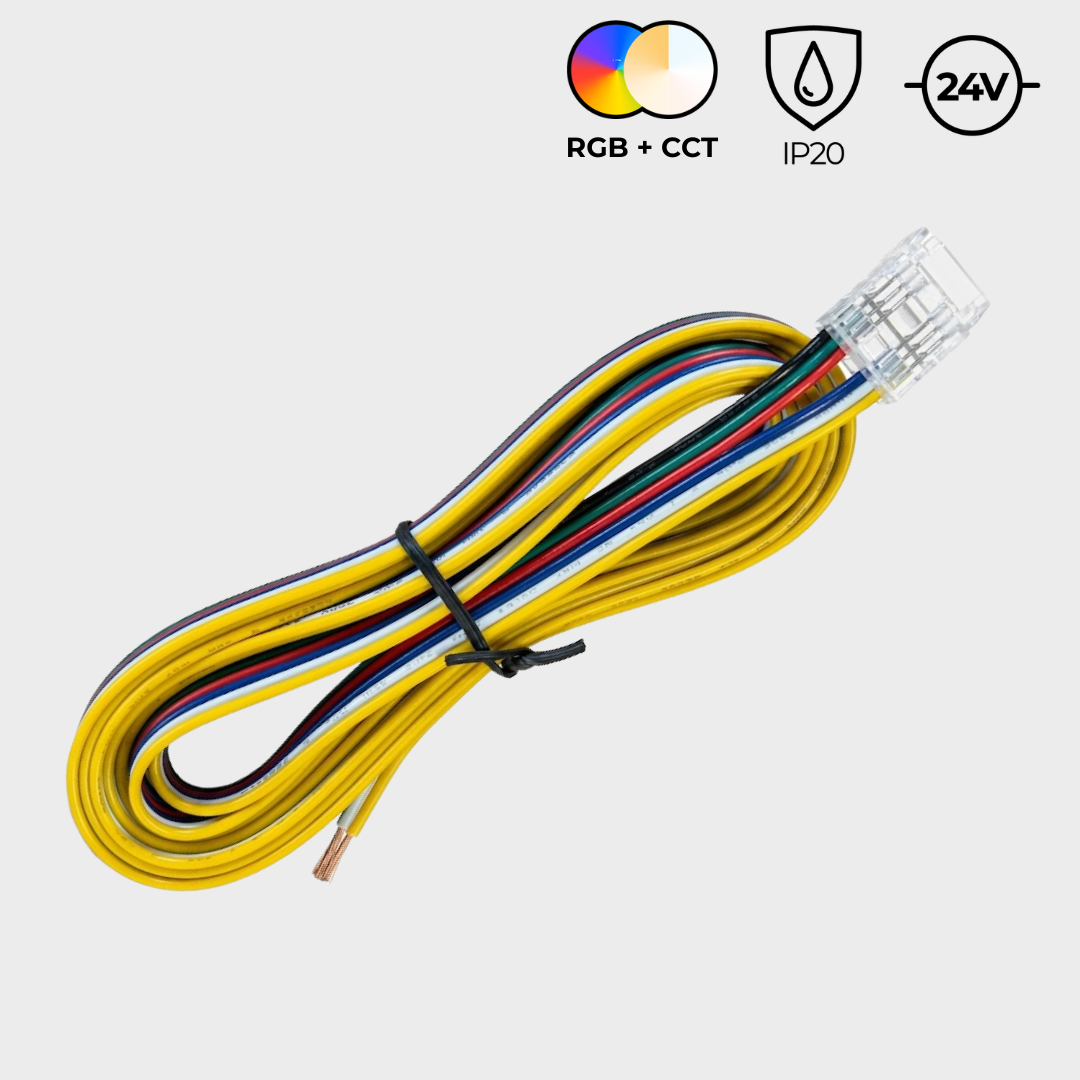

EnoLED 6 pin RGB+CCT LED strip connector extension wire for custom lighting layouts

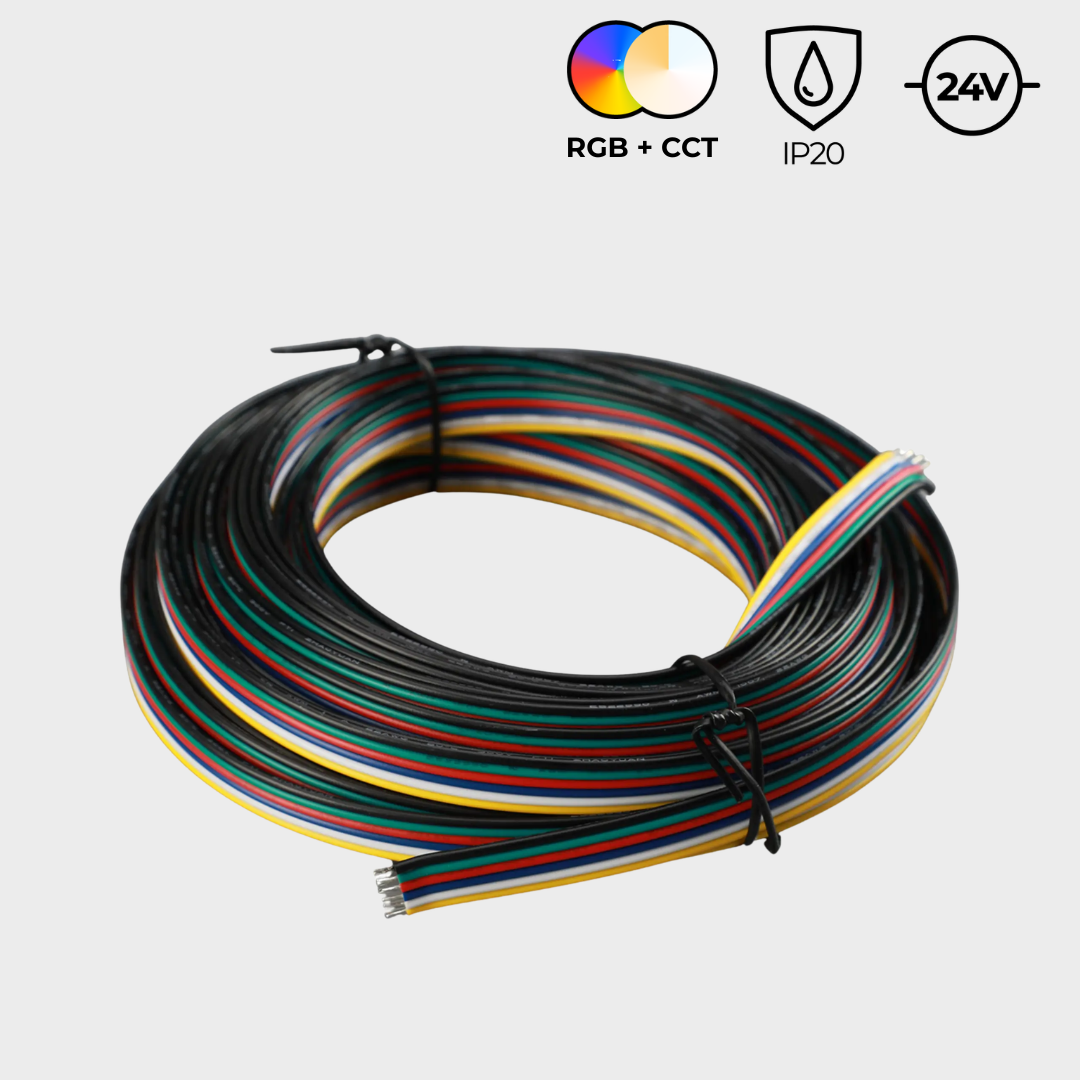

EnoLED RGB+CCT LED strip connector wire harness for RGB and tunable white LED strips

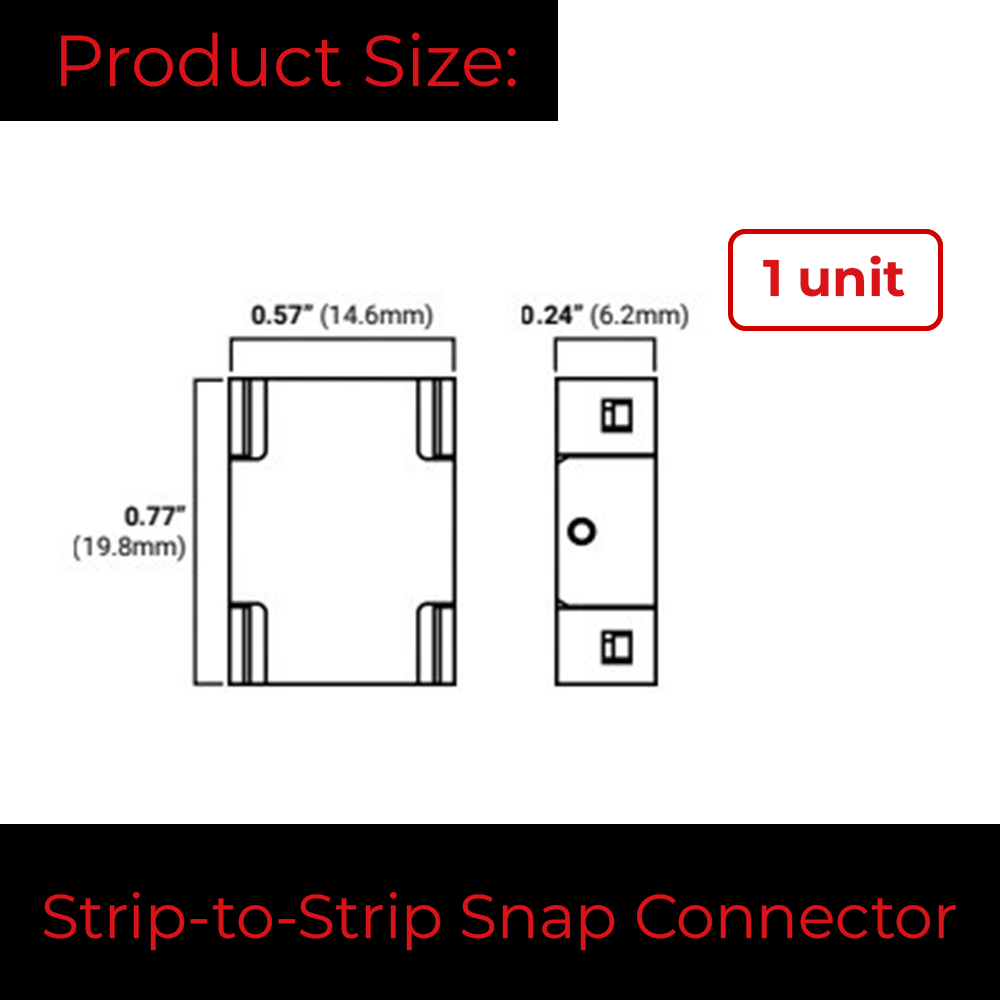

Product dimensions and installation diagram for EnoLED RGB+CCT strip-to-strip connector

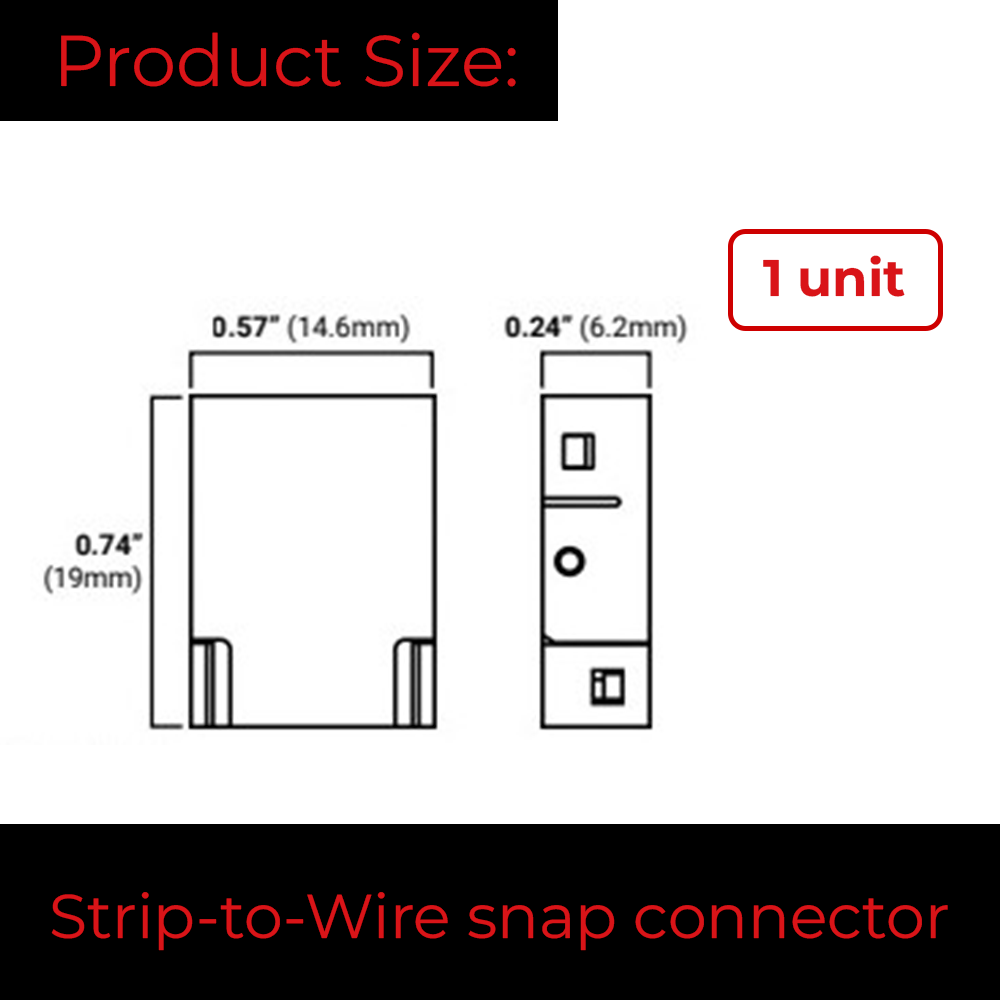

Product dimensions and installation diagram for EnoLED RGB+CCT strip-to-wire connector

EnoLED Solderless 6 Pin RGB+CCT LED Strip Connectors

In stock

$2.30

Are you a Pro? Save big everyday by joining the Pro Club

SKU: Uni-6P-TT-12

Strip-to-strip & strip-to-wire compatible

⁠Fits 12mm COB RGB+CCT LED strips

6A max power

Snap-on easy installation

Free Project Support - Contact Us

Free Shipping Over $249 - Details

30-Day Money-Back Guarantee

Description

The EnoLED Solderless 6 Pin COB RGB+CCT LED Strip Connectors are designed for fast, clean, and reliable connections in RGB+CCT COB LED tape light systems. Engineered for seamless performance, these connectors support both tape-to-tape and tape-to-wire applications without the need for soldering, making installation quick and hassle-free. Specifically designed for UniColor IP20 COB tape, they provide a stable and secure 6-pin connection for RGB and tunable white lighting, ensuring consistent signal and power transmission. The tool-free snap-on design allows for easy setup while maintaining a strong and dependable connection. With a low-profile construction, these connectors fit neatly inside most LED channels, helping achieve a clean, professional, and streamlined lighting installation.

Features

Secure screw-lock terminal connection
Fits 8mm & 10mm LED strips
Works with COB & SMD strips
5V to 24V DC input voltage
6A max current capacity
Fits inside most LED channels
Mini screwdriver included

Hotels and Hospitality

Kid's Room

Restaurant and Bars

Retail and Showroms

Specifications

Tape Width

0.47″ (12mm)

Operating Voltage

12V to 24V DC

Max Current

5.5A

Wire Range

14 to 20 AWG

IP Rating

IP20 (Indoor Use)

Frequently Bought Together

Purchase a complete kit with all the components needed:

EnoLED Solderless 6 Pin RGB+CCT LED Strip Connectors

$2.30

Qty

EnoLED 24V UniColor RGB+CCT (2700K-6000K) COB Series LED Strip Light

$147.42

Qty

EnoLED 24V ProDrive Series Universal Dimming LED Driver

$73.71

Qty

EnoLED EnoSync-Hub5 LED Controller – RGB / RGBW / RGB+CCT / CCT / Dimmer – 3A per Channel – Smart App & Remote Control

$71.82

Qty

Total Price: —

LED Connectors & Wires FAQ

1. What are LED connectors used for?

LED connectors are used to join LED strips, wires, and controllers without soldering on the low-voltage side of the system

2. What are LED wires used for?

LED wires carry power and control signals between LED strips, controllers, and power supplies. Most LED wiring is low voltage, while high voltage is typically limited to the wall-to-driver power cord.

3. Do I need connectors or can I solder LED strips?

Both connectors and soldering can be used for permanent installations. Connectors offer fast, tool-free connections, while soldering provides a direct wired connection.

4. What types of LED connectors are available?

Connector types include strip-to-strip, strip-to-wire, wire-to-wire, and corner connectors designed for different LED strip widths and conductor counts.

5. Can LED connectors and wires be used outdoors?

Connector types include strip-to-strip, strip-to-wire, wire-to-wire, and corner connectors designed for different LED strip widths and conductor counts.
