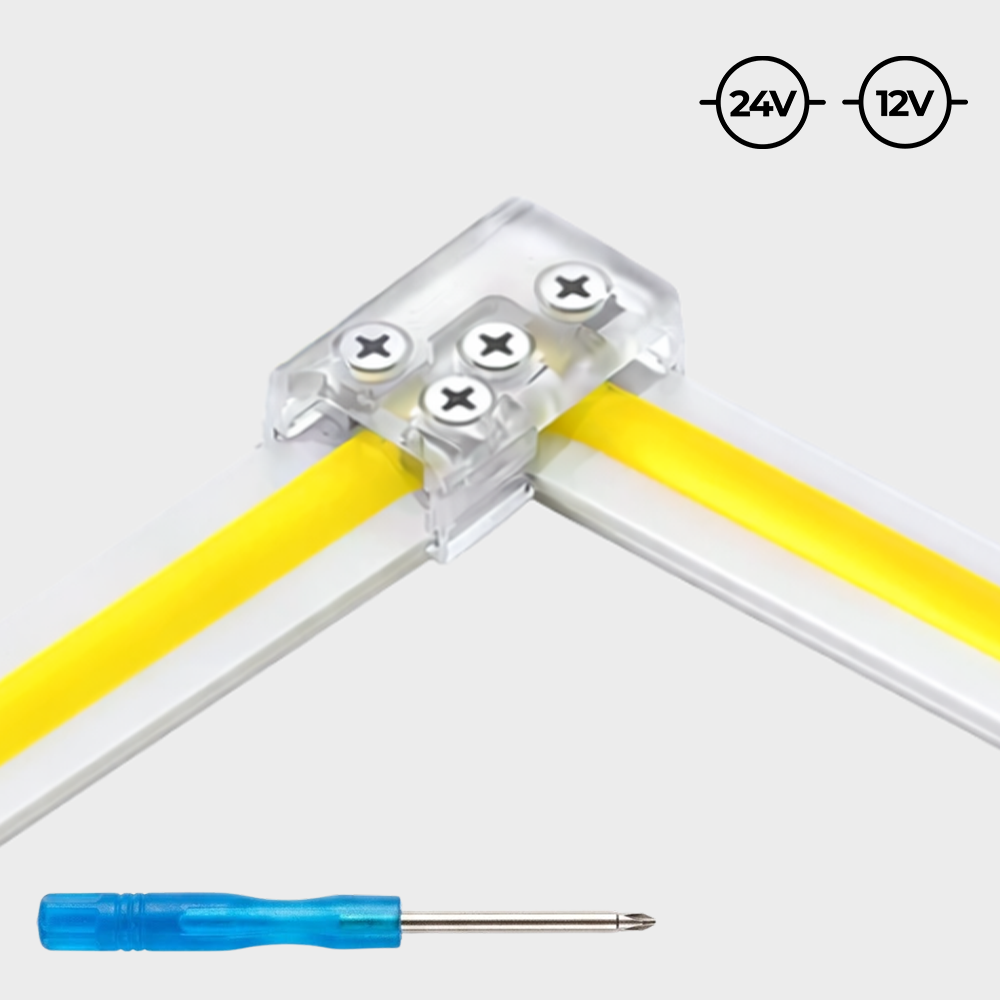

LEDClub solderless 90 degree L shape connector for LED strip lights

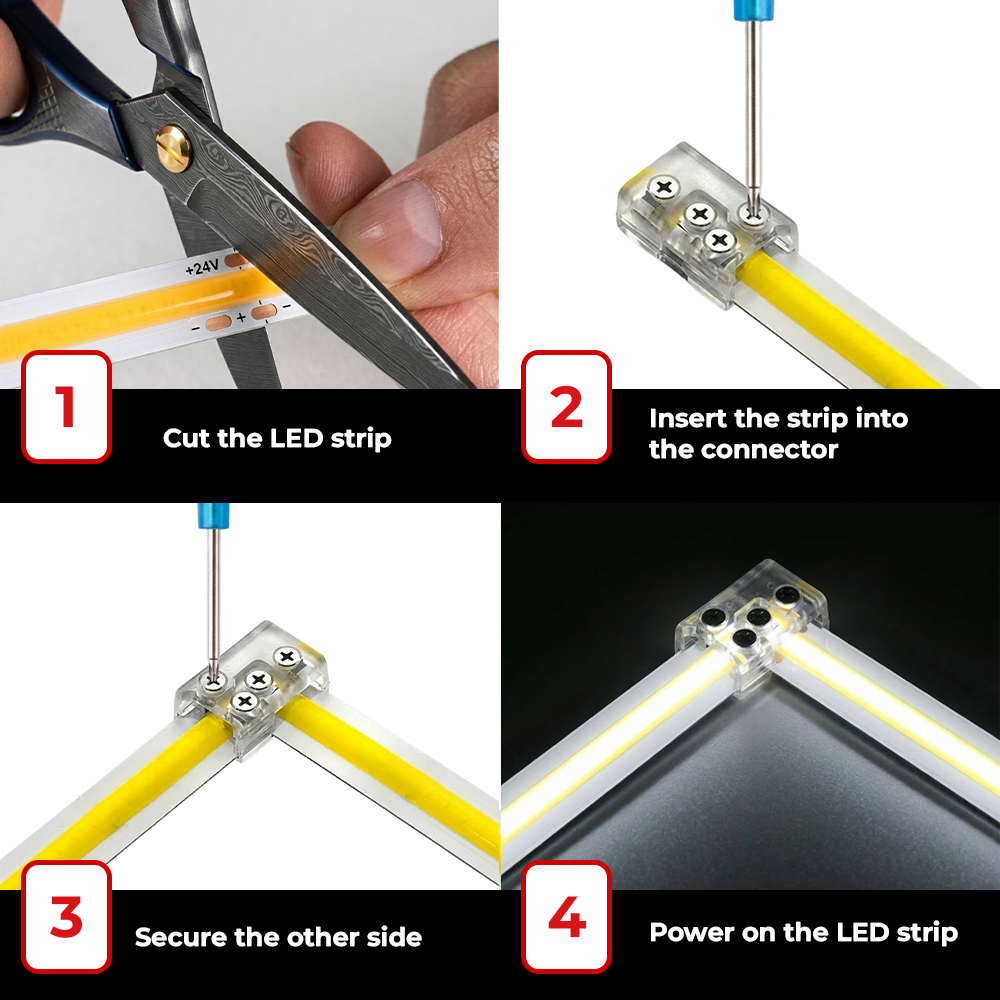

Step-by-step installation guide for LEDClub solderless 90 degree L shape LED strip connector

Dimensions of LEDClub solderless 90 degree L shape LED strip connector

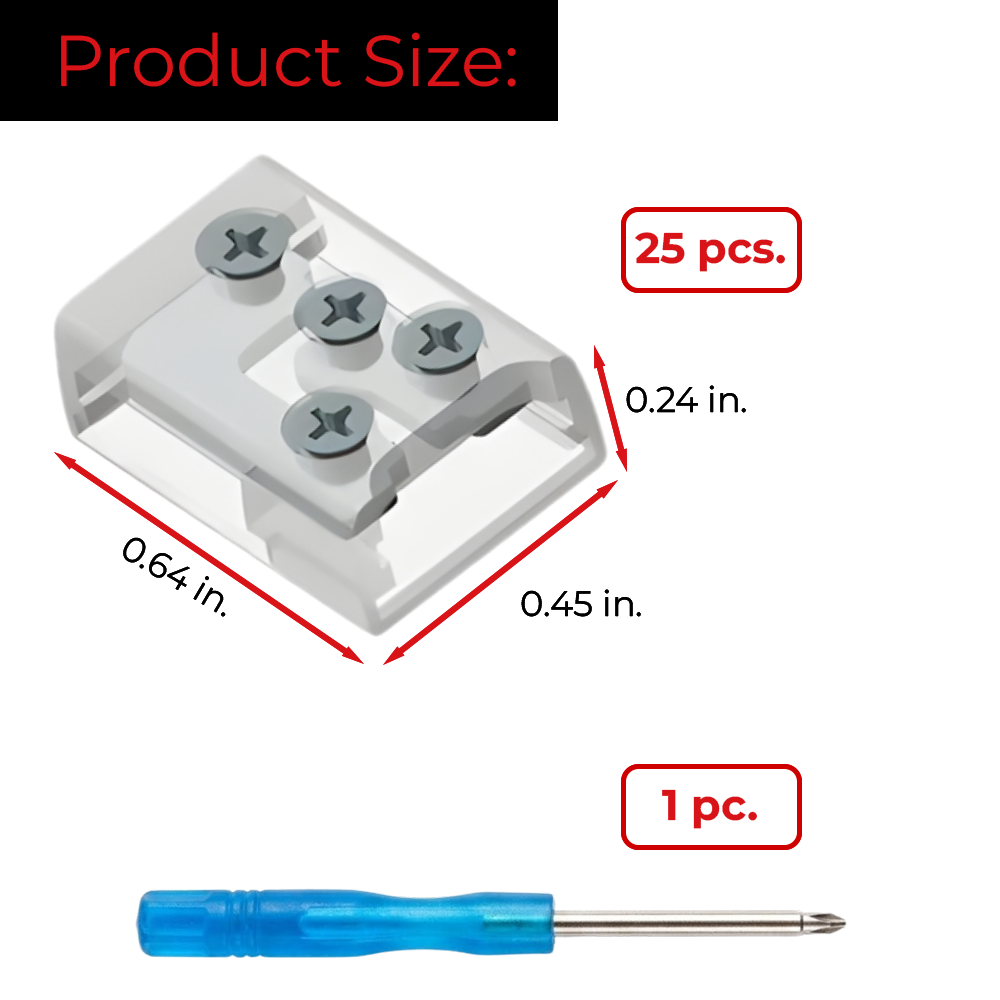

Product dimensions of LEDClub right angle LED strip connector

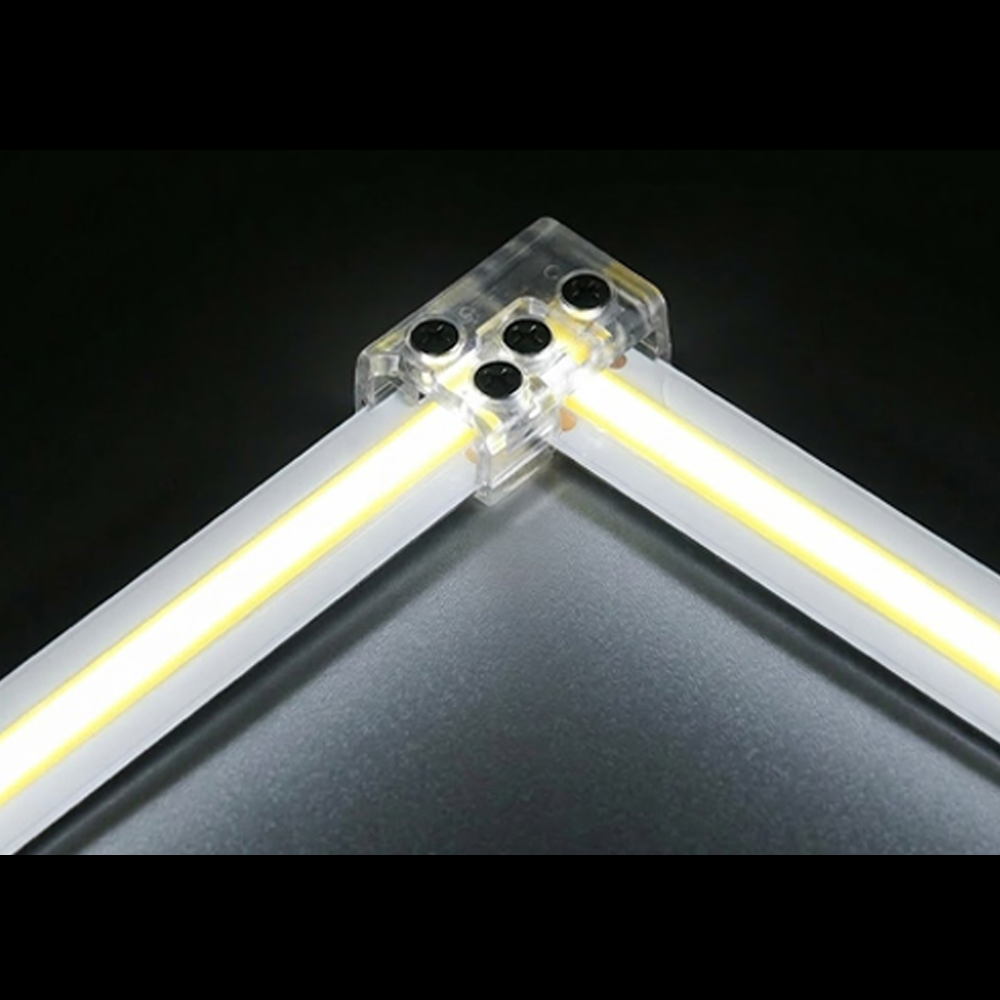

LEDClub solderless 90 degree L shape connector installed at LED strip corner connection

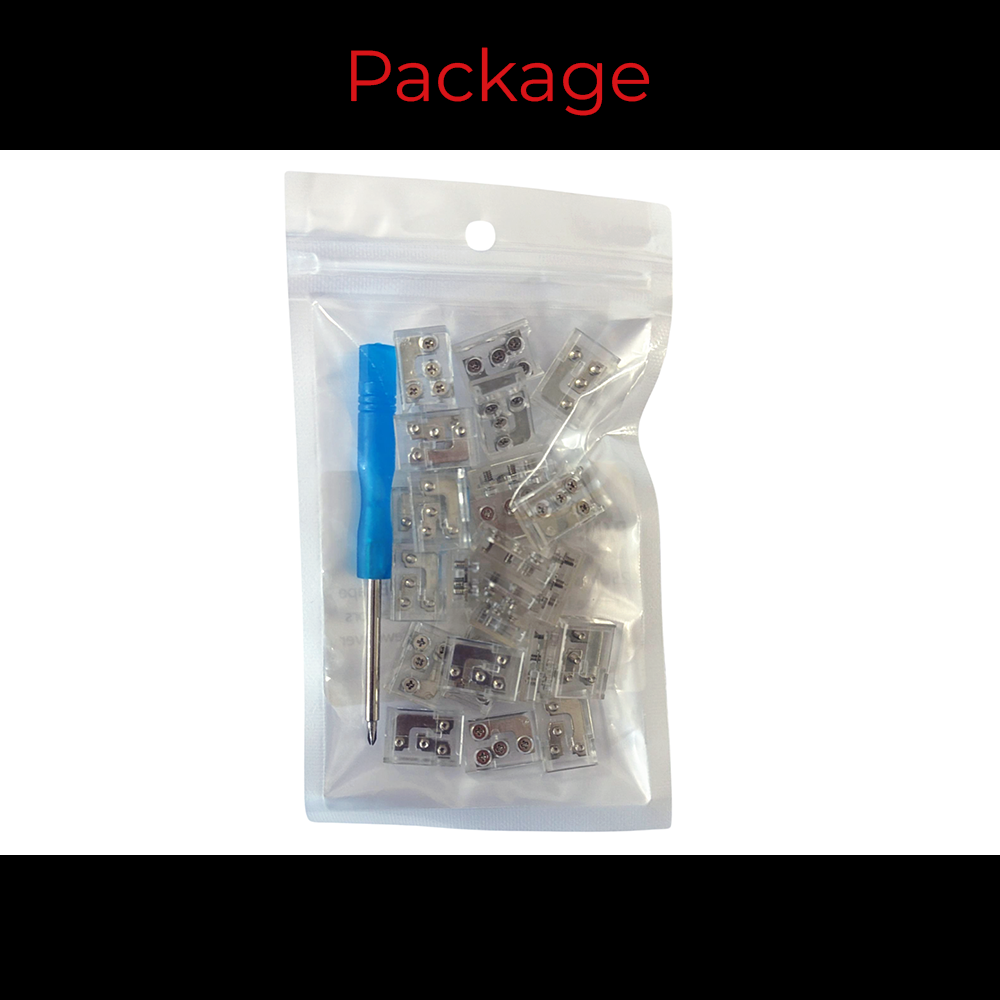

LEDClub solderless 90 degree L shape LED strip connector retail packaging

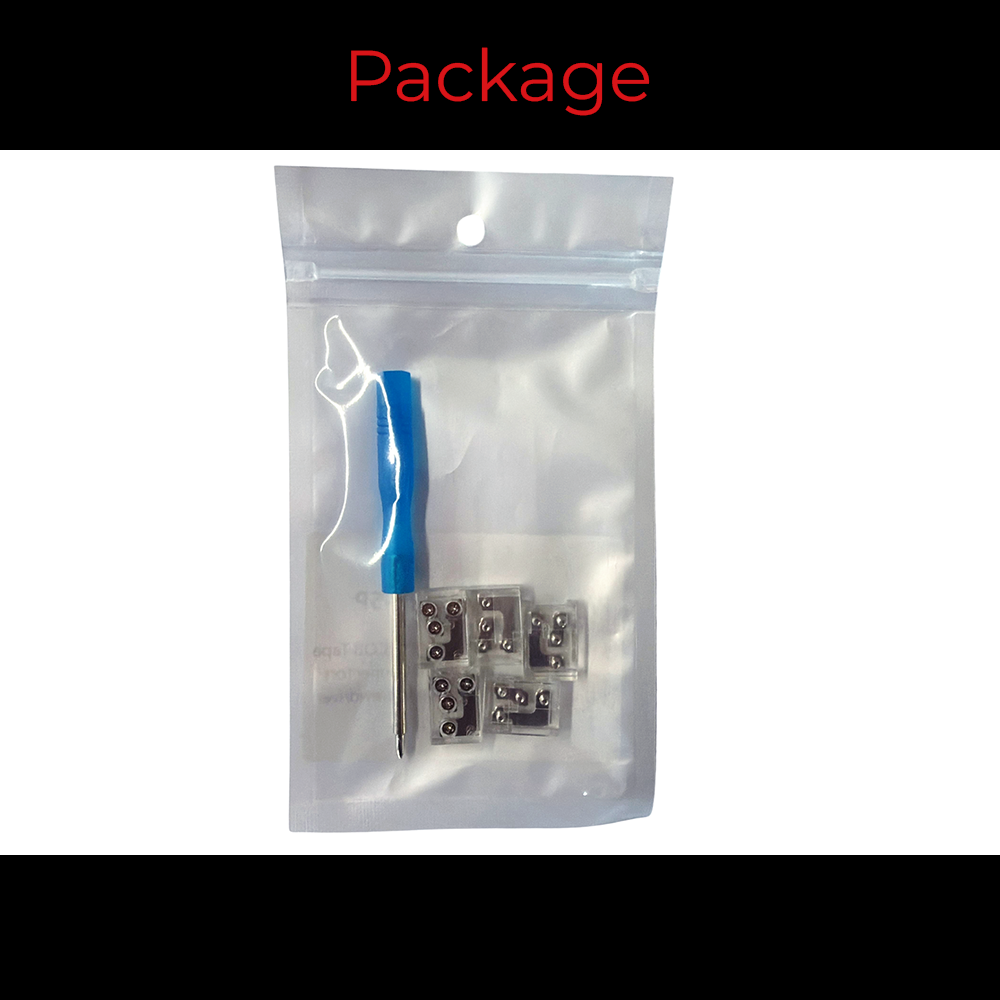

Packaged LEDClub right angle LED strip connector accessory

LEDClub Solderless LED Strip 90° L Shape Connector

In stock

$14.11

Are you a Pro? Save big everyday by joining the Pro Club

SKU: ENO-SC-LL-8-P5

Secure screw-lock connection

Fits 8mm & 10mm strips

Mini screwdriver included

Works with COB & SMD strips

Free Project Support - Contact Us

Free Shipping Over $249 - Details

30-Day Money-Back Guarantee

Description

LEDClub screw connectors offer a simple, reliable way to connect LED strip lights without soldering. The screw-terminal design helps create a secure electrical connection for strip-to-wire or strip-to-strip installations, making on-site setup faster and easier. Designed for use with 8mm and 10mm single color LED strip lights, these connectors are compatible with most COB and SMD strips used in residential and commercial projects. Their compact size also allows them to fit inside most LED channels for a cleaner finished installation. Each connector includes a mini screwdriver for easy terminal tightening during installation. Ideal for under-cabinet lighting, cove lighting, display lighting, and other indoor LED strip applications where a dependable connection matters.

Features

Secure screw-lock terminal connection
Fits 8mm & 10mm LED strips
Works with COB & SMD strips
5V to 24V DC input voltage
6A max current capacity
Fits inside most LED channels
Mini screwdriver included

Cove and Indirect Lighting

Shelving Lighting

Stair Lighting

Toe Kick Lighting

Under Cabinet Lighting

Specifications

Tape Width

0.31" (8mm) / 0.39" (10mm)

Dimensions

W: 0.45" (11.4mm) x L: 0.64" (16.3mm) × H: 0.25" (6mm)

Operating Voltage

12V to 24V DC

Max Current

Wire Range

14 to 20 AWG

IP Rating

IP20 (Indoor Use)

Frequently Bought Together

Purchase a complete kit with all the components needed:

LEDClub Solderless LED Strip 90° L Shape Connector

$14.11

Qty

LEDClub 24V COB 300 Series Medium Brightness LED Strip Light

$33.24

Qty

EnoLED 24V XRD Series Phase Cut Dimmable J-Box LED Driver

$83.79

Qty

Lutron Diva LED+ Dimmer Switch Single pole or 3-way White

$52.34

Qty

Total Price: —

LED Connectors & Wires FAQ

1. What are LED connectors used for?

LED connectors are used to join LED strips, wires, and controllers without soldering on the low-voltage side of the system

2. What are LED wires used for?

LED wires carry power and control signals between LED strips, controllers, and power supplies. Most LED wiring is low voltage, while high voltage is typically limited to the wall-to-driver power cord.

3. Do I need connectors or can I solder LED strips?

Both connectors and soldering can be used for permanent installations. Connectors offer fast, tool-free connections, while soldering provides a direct wired connection.

4. What types of LED connectors are available?

Connector types include strip-to-strip, strip-to-wire, wire-to-wire, and corner connectors designed for different LED strip widths and conductor counts.

5. Can LED connectors and wires be used outdoors?

Connector types include strip-to-strip, strip-to-wire, wire-to-wire, and corner connectors designed for different LED strip widths and conductor counts.
