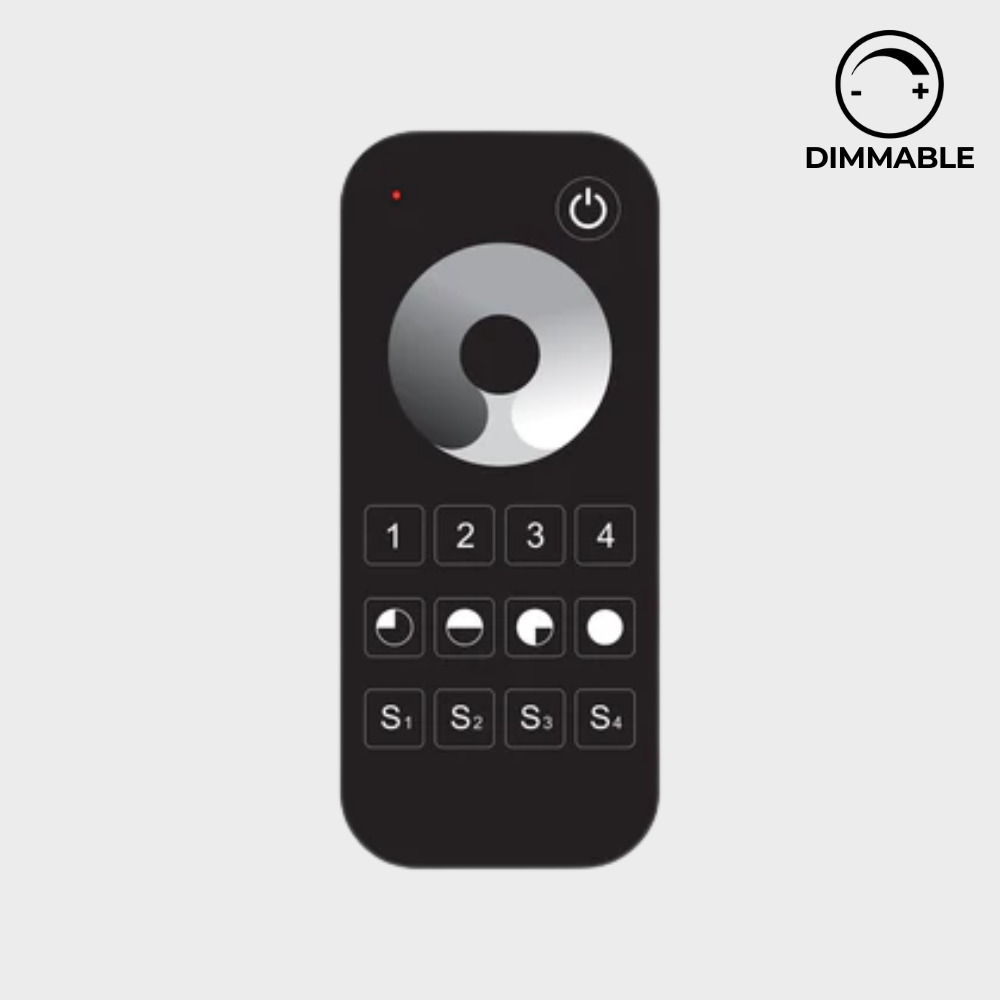

EnoLED EnoSync touch wheel RF dimmer remote for single color LED strip lights

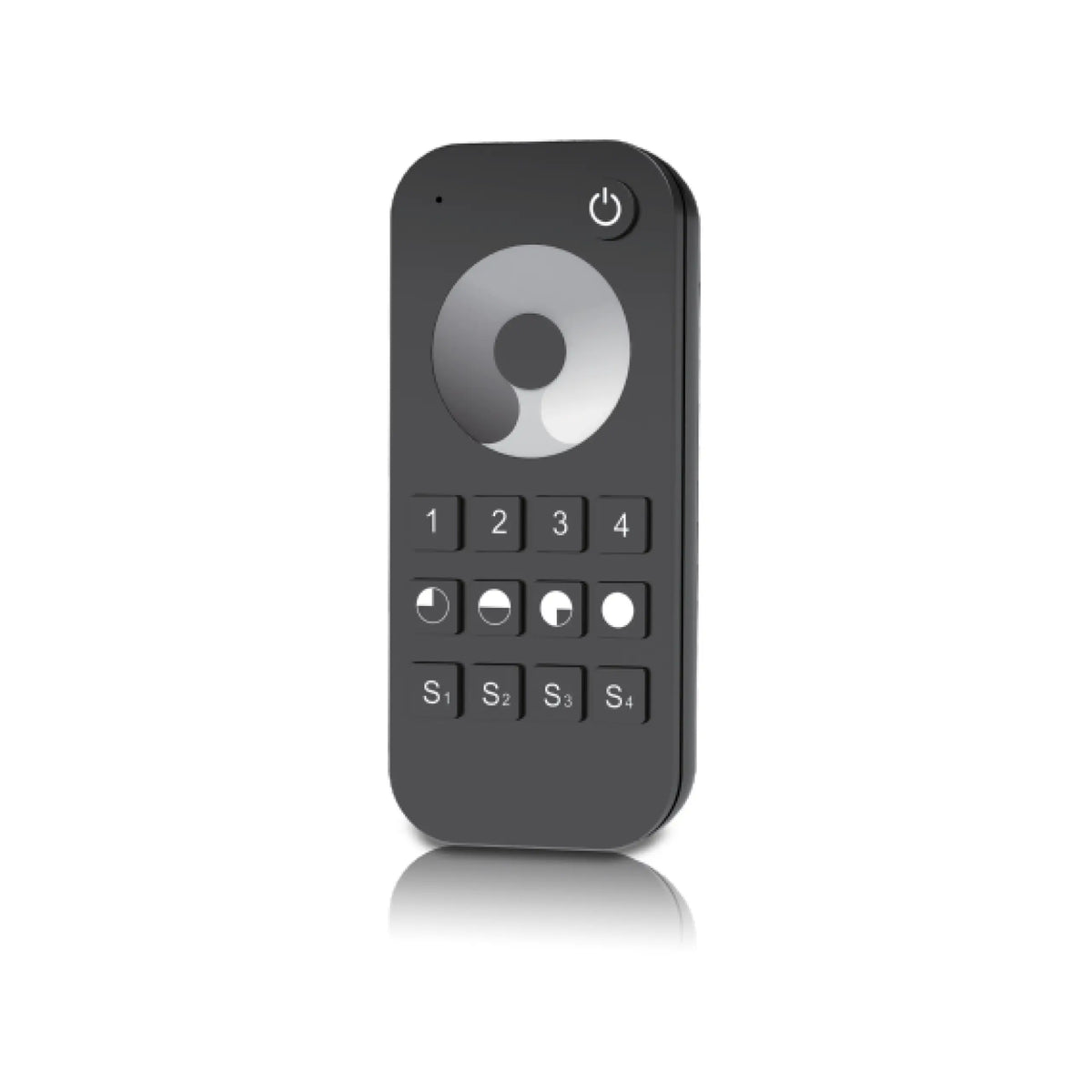

EnoLED EnoSync touch wheel wireless RF remote controller for single color LED strip dimming

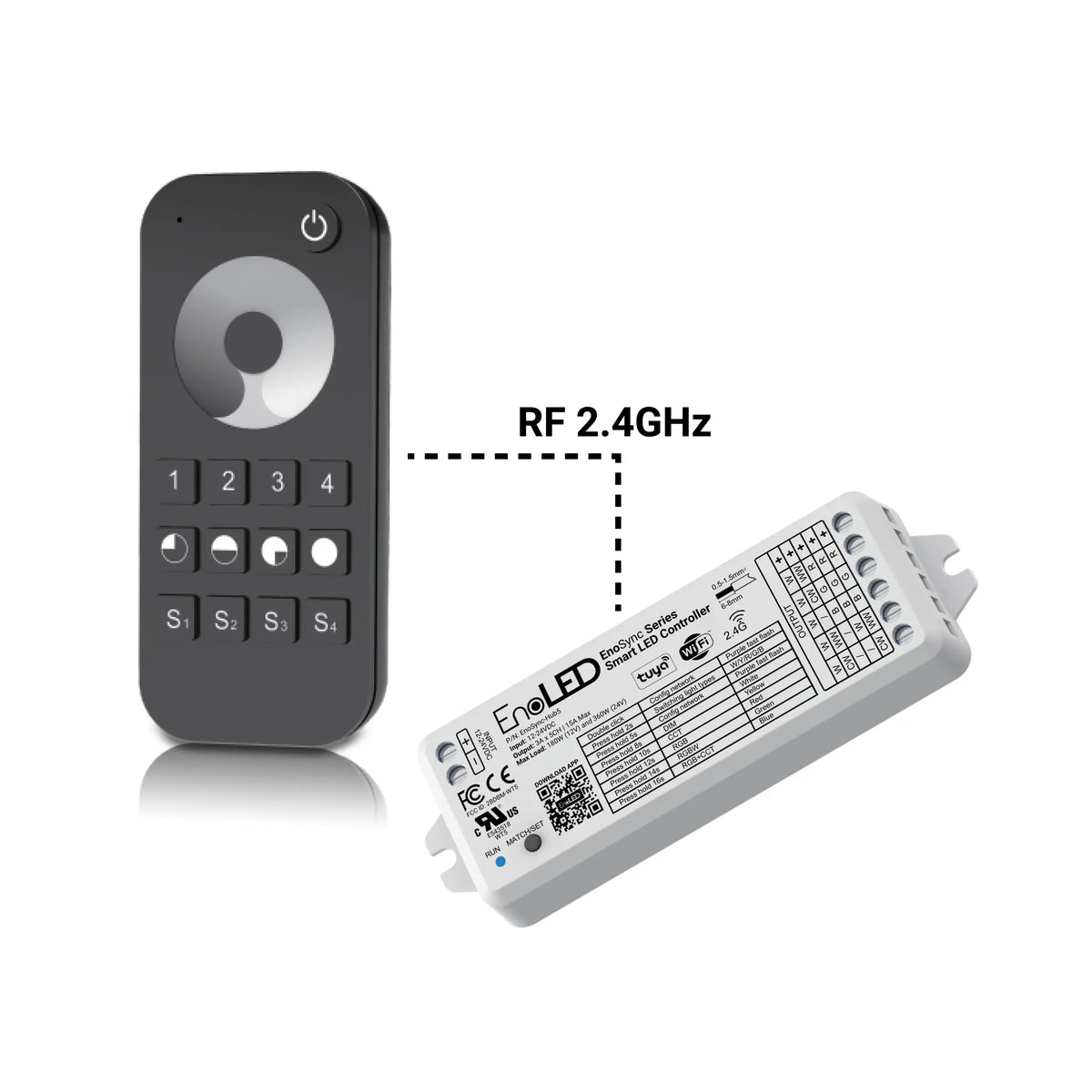

EnoLED EnoSync wireless RF remote controller with LED dimmer receiver for single color LED strips

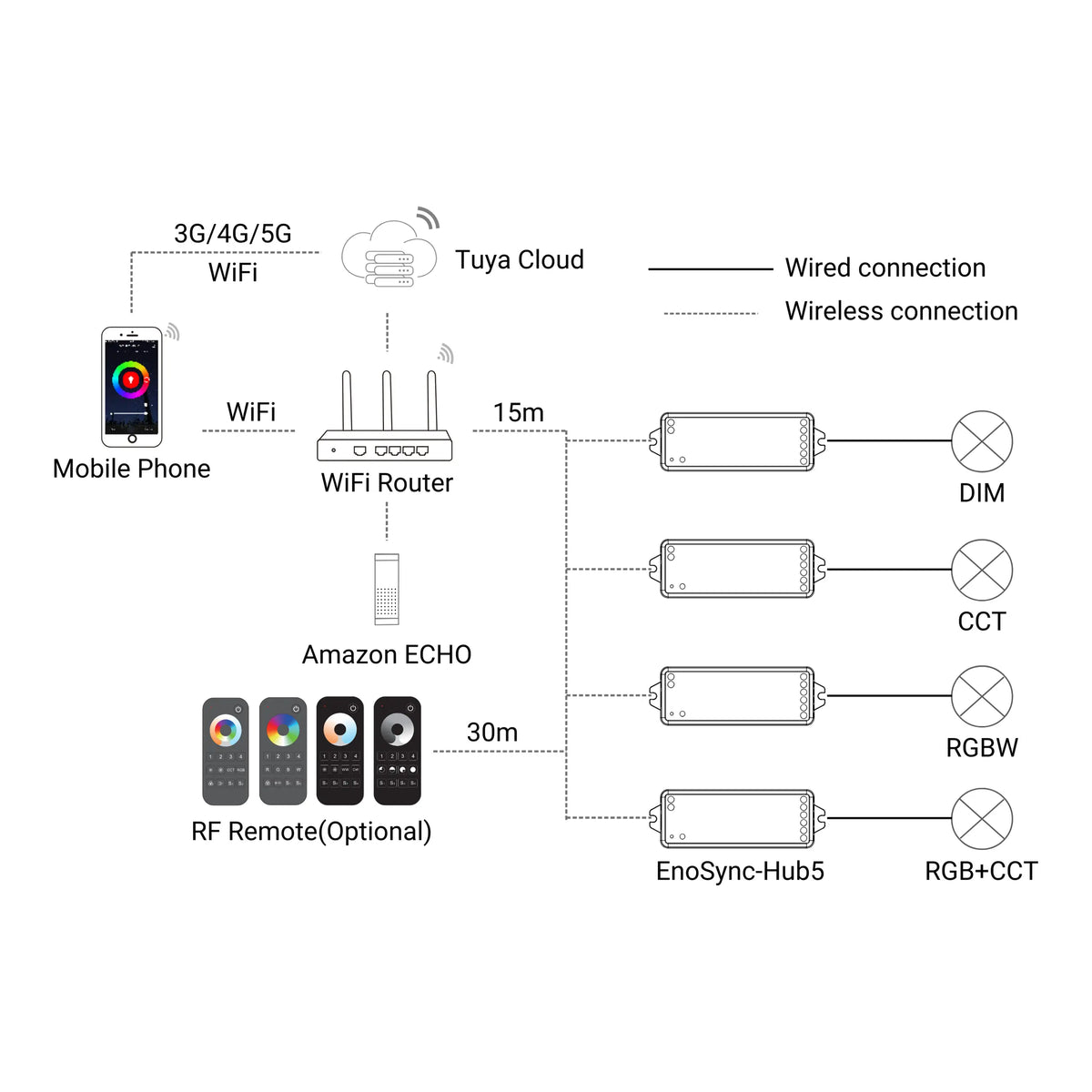

Wiring diagram for EnoLED EnoSync wireless RF remote controller and LED dimmer receiver

EnoLED EnoSync Touch Wheel Wireless RF Remote Controller – Dimmer – 4 Zone – Single Color LED Strip Compatible

Name: EnoLED EnoSync Touch Wheel Wireless RF Remote Controller – Dimmer – 4 Zone – Single Color LED Strip Compatible
Brand: The Lighting Project
SKU: ES-RT-Z4-DIM
Price: 54.81 USD
Availability: InStock

In stock

$54.81

Sale ~~$60.90~~ $54.81

Are you a Pro? Save big everyday by joining the Pro Club

SKU: ES-RT-Z4-DIM

4-Zone RF Dimmer

Controls Up to 32 Controllers

Touch Wheel + Scene Save

100ft / 30m Range

Free Project Support - Contact Us

Free Shipping Over $249 - Details

30-Day Money-Back Guarantee

Description

The EnoSync Single Color Remote is a 4 zone RF dimming remote built for single color LED strip installations. It features an ultra responsive touch wheel for smooth, accurate brightness control and supports quick scene recall for efficient operation. One remote can operate multiple EnoSync single color controllers, making it perfect for residential and commercial dimming applications that require reliable and simple multi zone control.

Features

Cove and Indirect Lighting

Shelving Lighting

Stair Lighting

Toe Kick Lighting

Under Cabinet Lighting

Specifications

Output Signal

RF(2.4GHz)

Working Voltage

3VDC(AAAx2)

Working Current

<5mA

Standby Current

<10µA

Standby Time

1 year

Remote Distance

30m (Barrier-free space)

Operation Temperature

-30°C ~ +55°C/-22°F ~ +131°F

Dimensions (W x H x L)

2.08" x 0.68" x 4.8"

Gross Weight

0.088kg

Warranty

5 years

EMC Standard

EN IEC 55015/EN IEC 61547 ETSI EN 301 489-1/-3

Safety Standard

EN 61347-1/-2 EN 62493

Radio Equipment

ETSI EN 300 440

Certification

CE RoHS FCC UL

Frequently Bought Together

Purchase a complete kit with all the components needed:

EnoLED EnoSync Touch Wheel Wireless RF Remote Controller – Dimmer – 4 Zone – Single Color LED Strip Compatible

$54.81

Qty

EnoLED EnoSync-Hub5 LED Controller – RGB / RGBW / RGB+CCT / CCT / Dimmer – 3A per Channel – Smart App & Remote Control

$71.82

Qty

EnoLED 24V ELD Plug-in / Direct wire Non-Dimmable Power Supply

$67.20

Qty

LEDClub 24V COB 300 Series Medium Brightness LED Strip Light

$33.24

Qty

Total Price: —

LED Controllers FAQ

1. What types of LED controllers do you offer?

We offer smart low-voltage LED controllers with WiFi and app control, as well as systems designed to work with standard phase-cut (TRIAC) wall dimmer switches.

2. What is a smart low-voltage LED controller used for?

Smart low-voltage controllers are used when app-based control, scenes, scheduling, or color control is needed. They are commonly used with RGB, RGB+CCT, and tunable white LED lighting.

3. What is phase-cut (TRIAC) dimming?

Phase-cut (TRIAC) dimming is the most common LED dimming method and works with standard wall dimmer switches. Dimming is controlled on the AC side using a compatible dimmable power supply.

4. When should I use a smart controller instead of a wall dimmer?

Use a smart controller for color control, tunable white adjustment, or app-based operation. Use a phase-cut wall dimmer for simple brightness control of single-color LED lighting.

5. Can smart controllers and wall dimmers be used together?

No. Smart low-voltage controllers and phase-cut wall dimmers are different control methods and should not be used together on the same circuit.

6. How do I choose the right LED controller?

Choosing the right LED controller depends on the LED type and how you want to control it. Color-changing or app-controlled lighting requires a smart controller, while simple dimming uses a phase-cut compatible system.
